1. Overview
The H160A isan integrated fingerprint module, which integrates capacitive fingerprintsensor and algorithm processor. Connected to host with UARTs , it implementsmany functionalities including image acquisition, feature extraction, templategeneration, fingerprint input, fingerprint matching, fingerprint deletion andothers. The simple and easy to use control instruction set is very convenientfor secondary development and can be quickly embedded in a variety of productsthat requiring fingerprint authentication.
2. Features
1. Fingerprintcapacity : 300(default),1000(maximum)
2. Highspeed of Fingerprint recognition： 0.15S@1:1000
3. Supportsimport and export fingerprint template
4. SupportsISO 19794-2 and ANSI 378-2004 international fingerprint templates
ultra-low powerconsumption：Operating current 8.8mA ，Standby current 8uA
5. Supportswake-on-touch
6. HighESD capability：contact: ±8K ,air: ±15KV

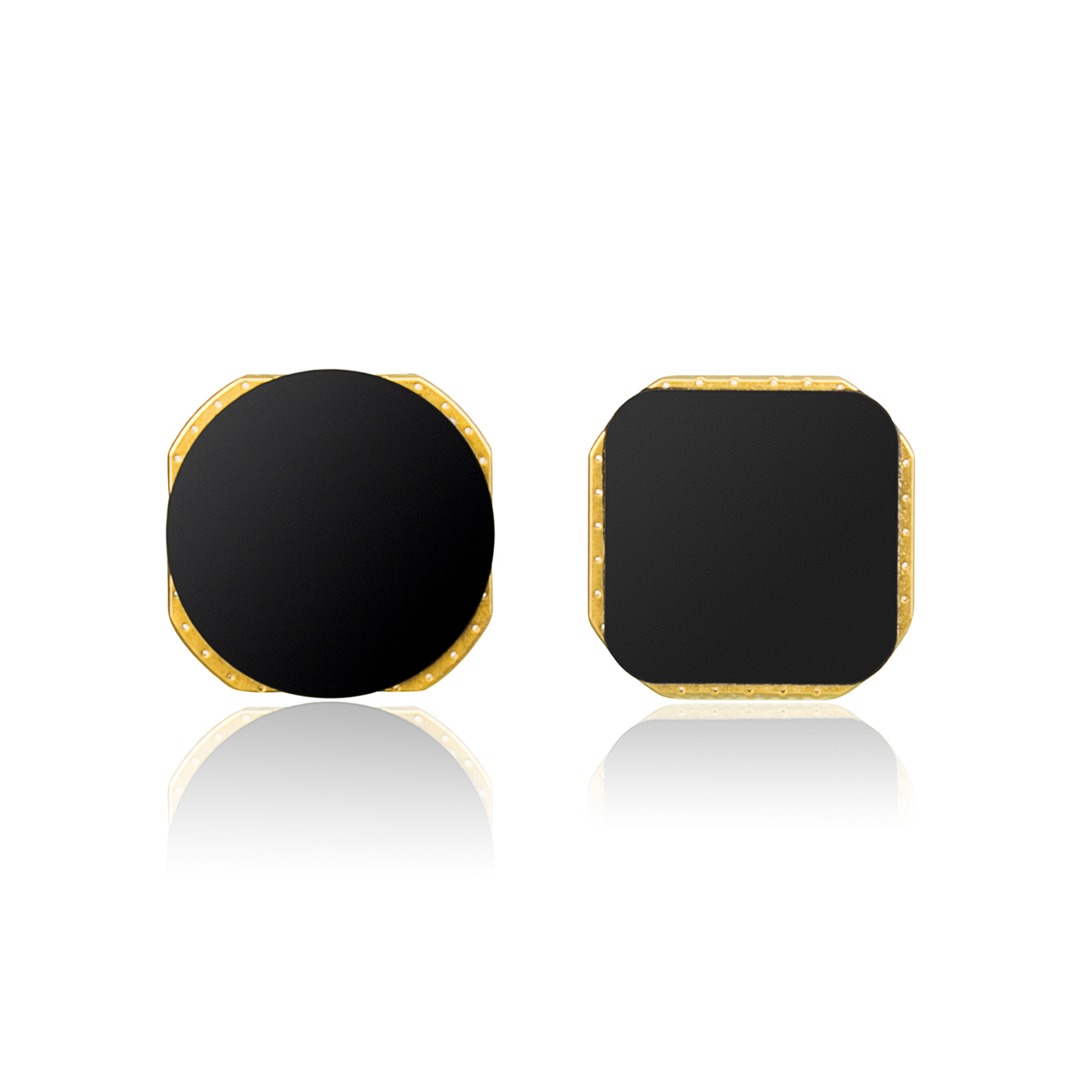

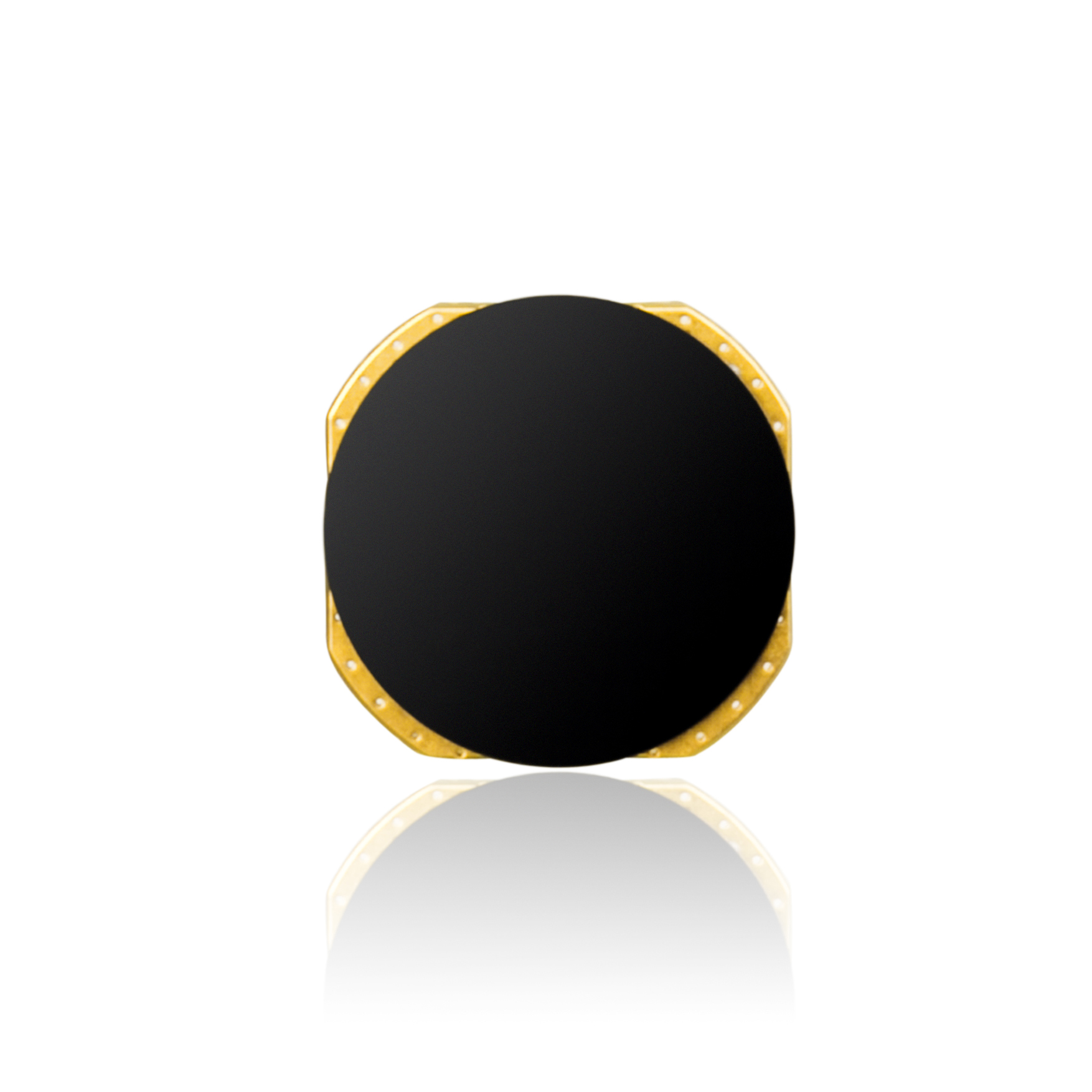

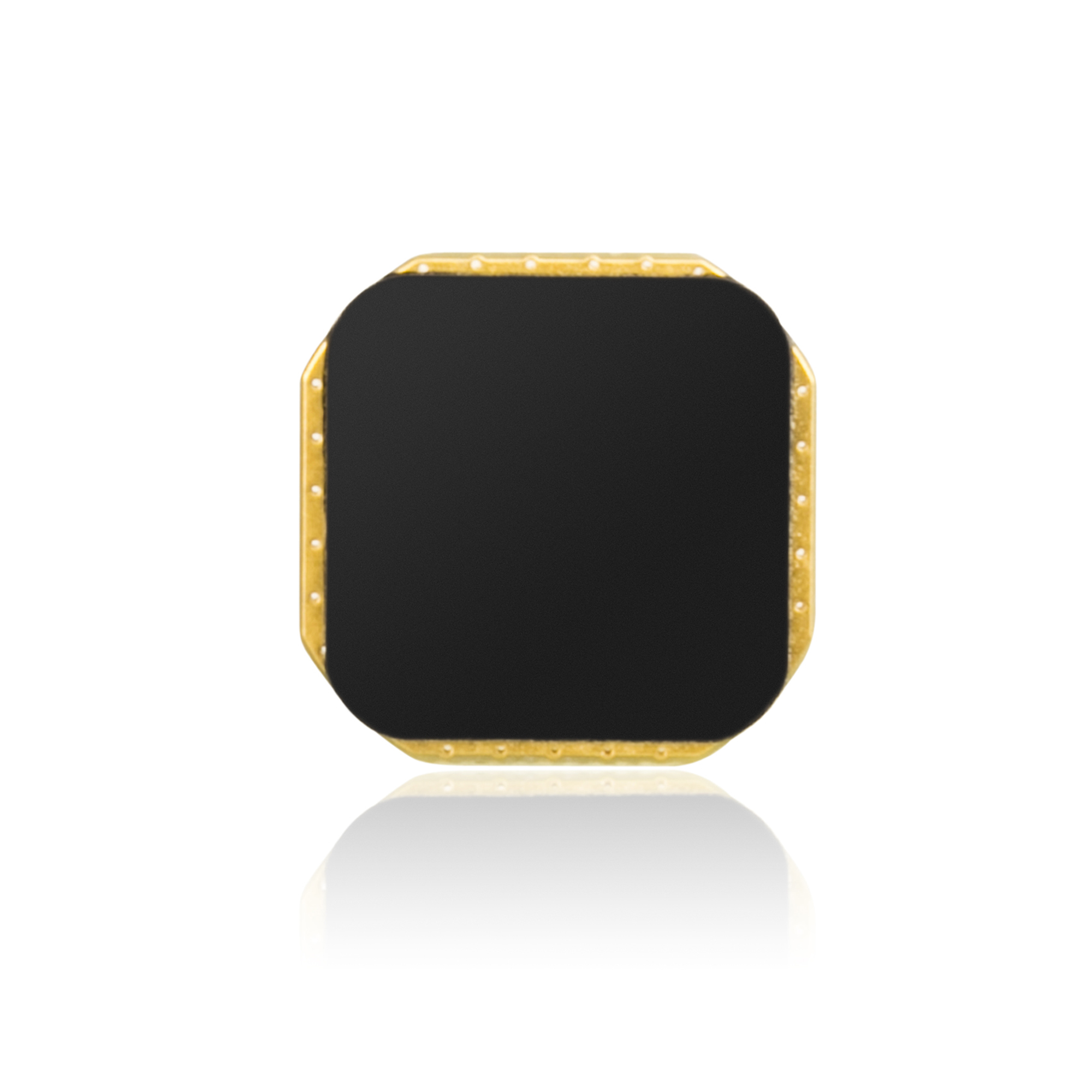

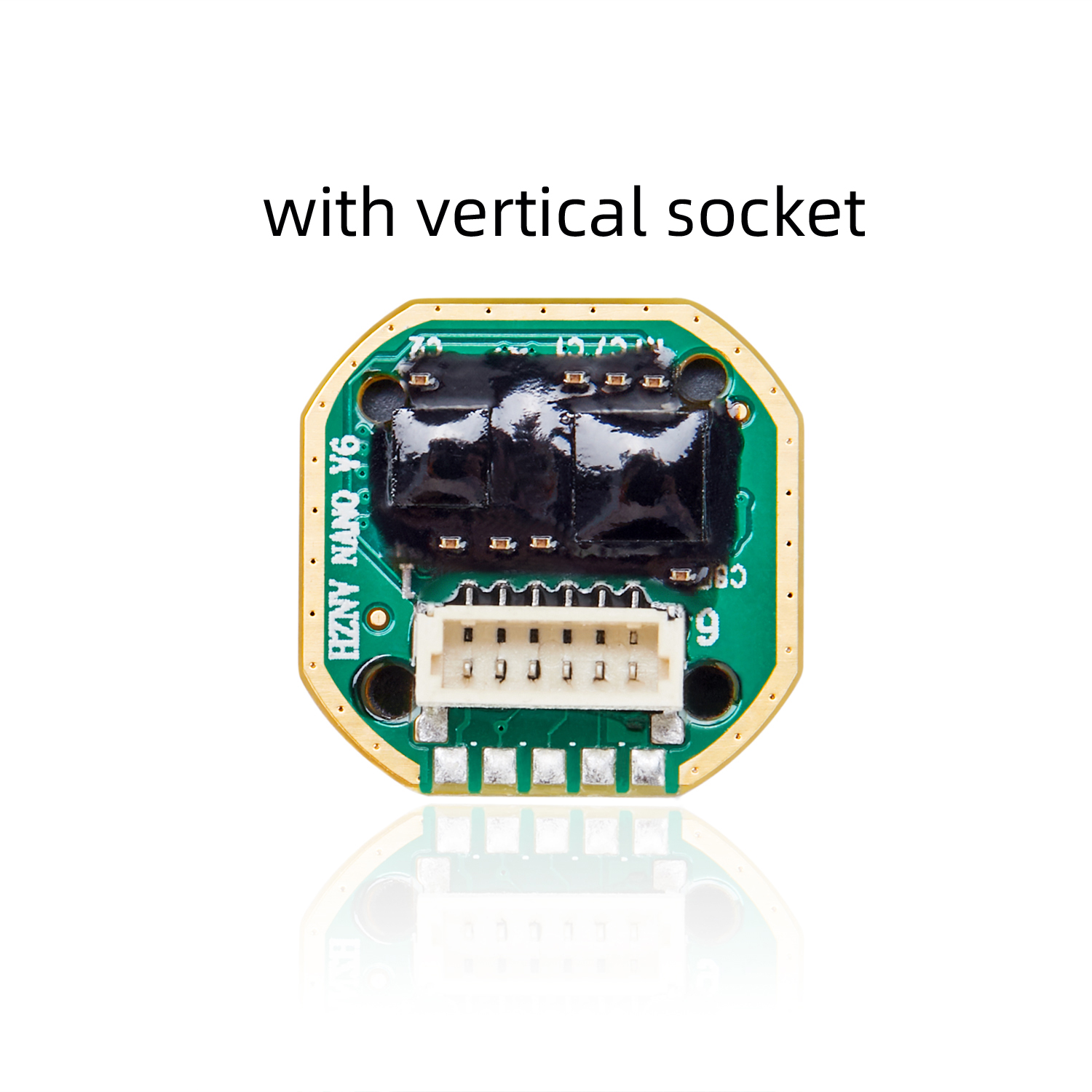

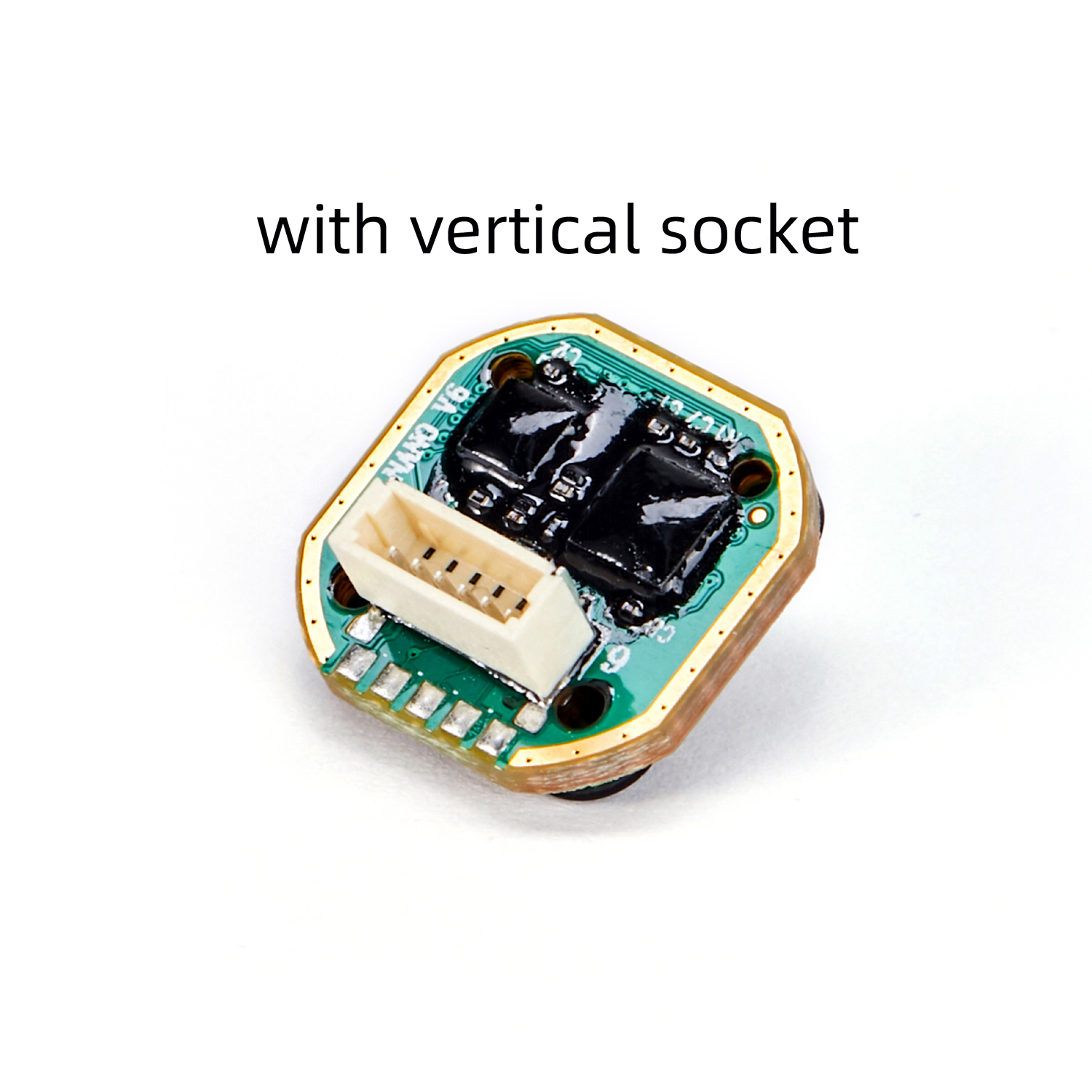

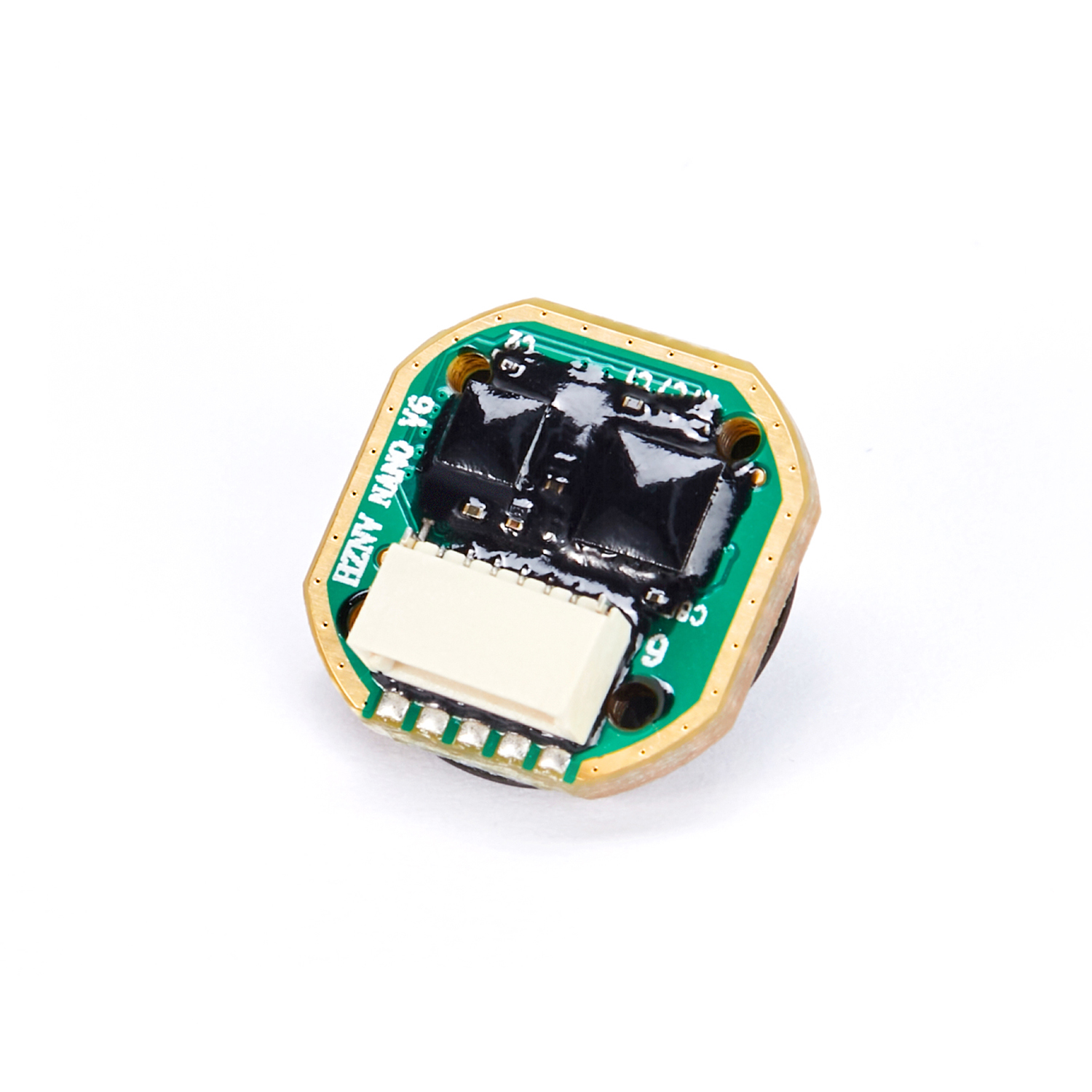

7. Capacitivesemiconductor sensor, round and square packages are selectable
8. Supportsglass cover
3. Technical Parameters:
Item | Description |
Sensor | Capacitive semiconductor fingerprint sensor |
Image Size | 160pixel*160pixel |
Resolution | 508DPI |

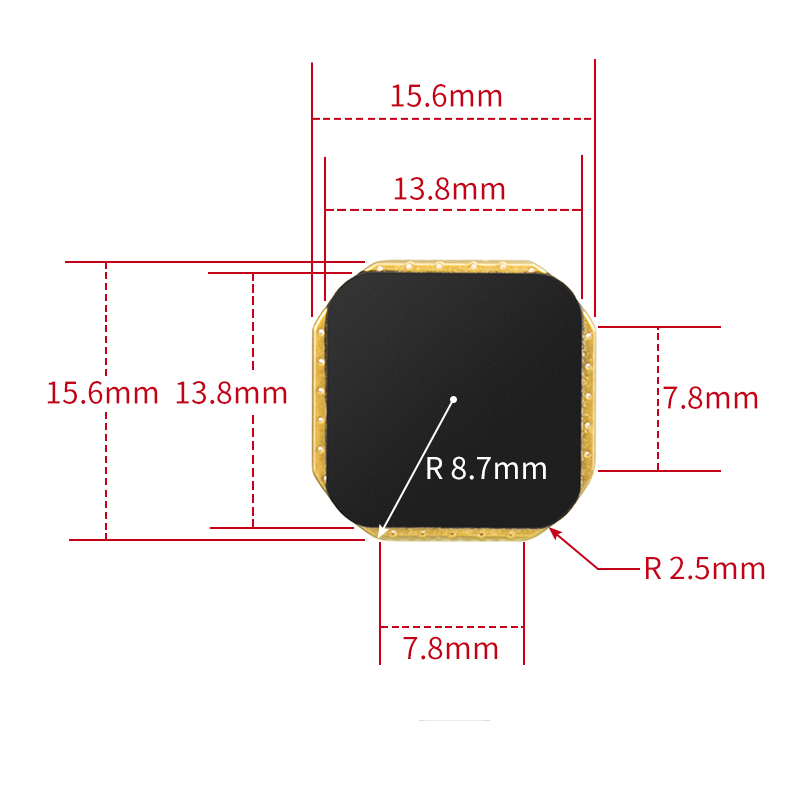

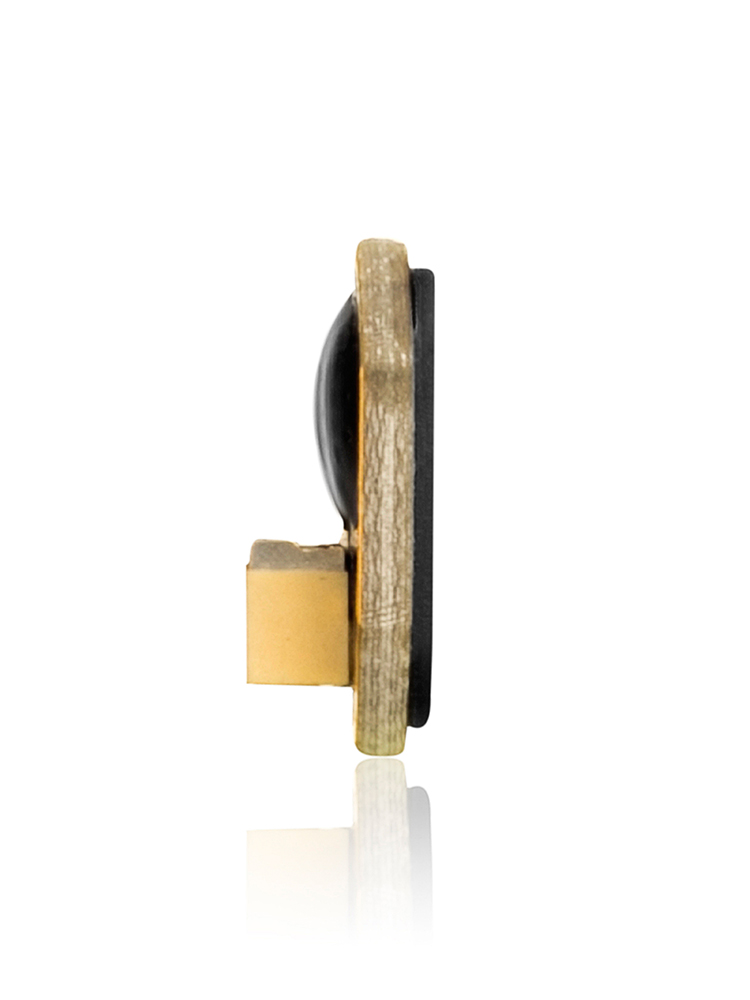

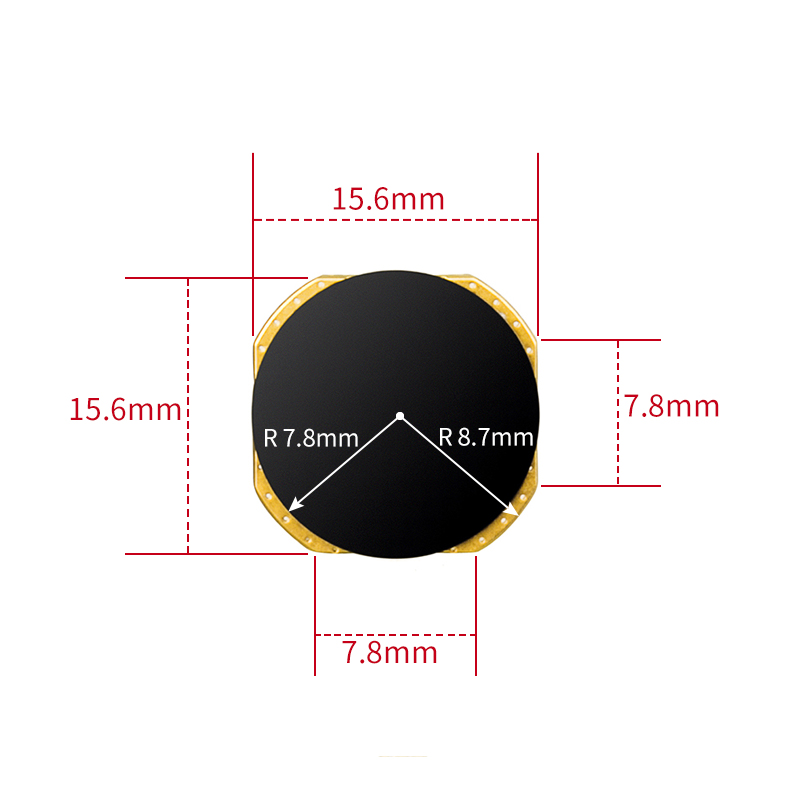

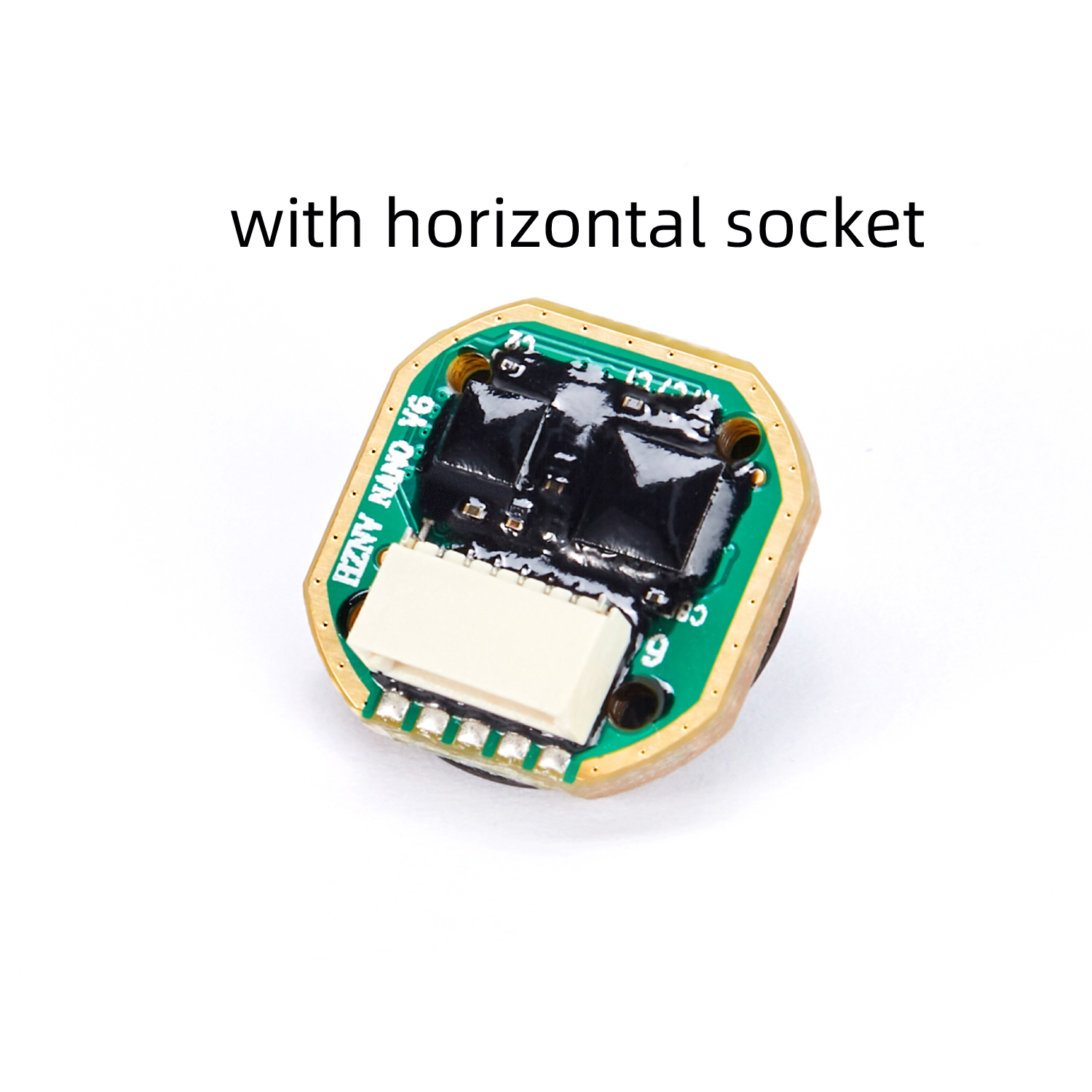

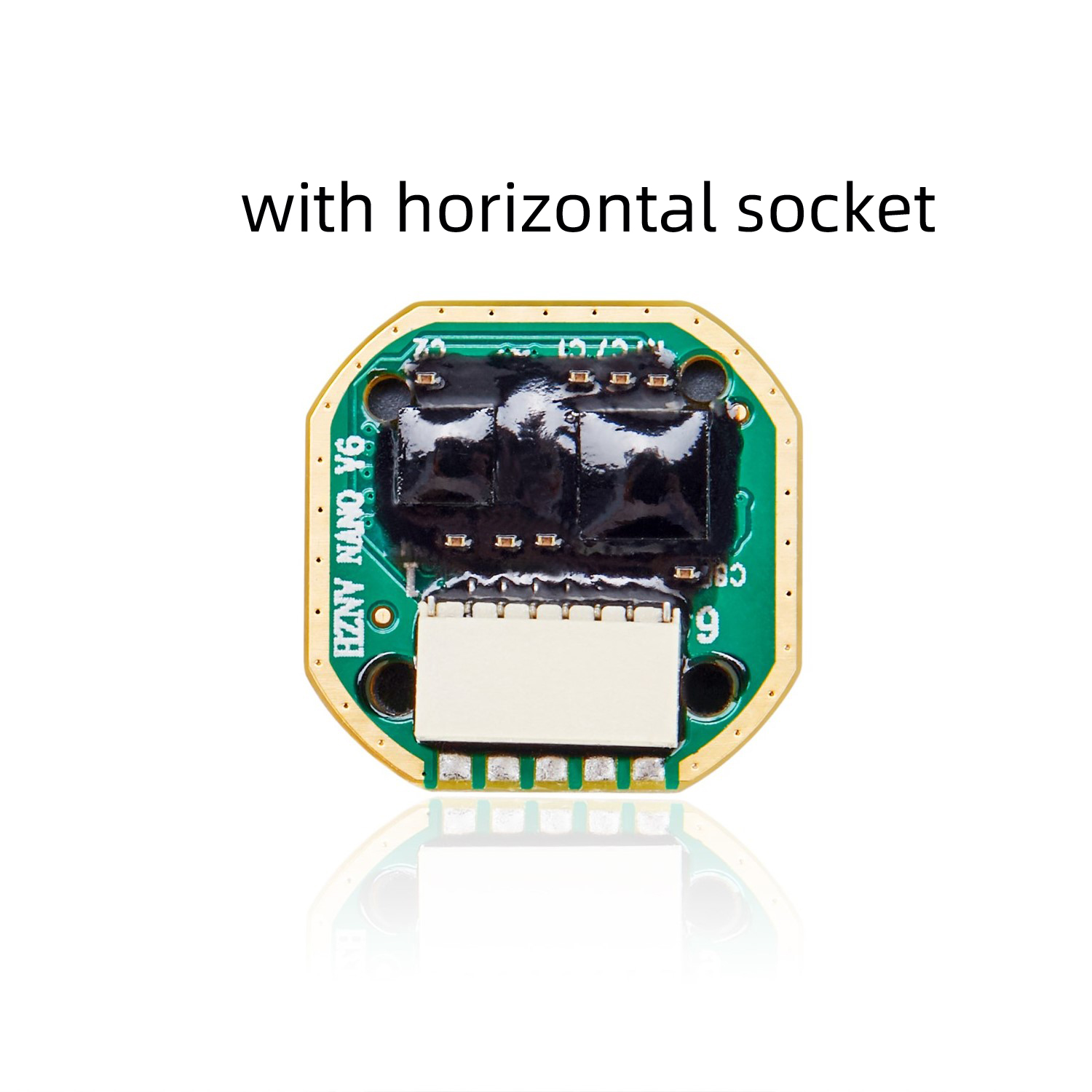

Size (L*W*H) | 15.6mm*15.6mm*3.5mm (Height without socket) |
Finger Capacity | 300(default),1000(maximum) |
Communication Interface | UART TTL,8bits, baud rate:9,600~2,000,000 bps |
Recognition Accuracy | FRR<3%, FAR<0.001% |
Operating Voltage | 3.0 v ~ 3.6 v |
Operating Current | 8.8mA (Representative Value) |
Standby Current | 8μA (Representative Value) |
ESD | Contact: ±8K , Air: ±15KV |
Operating Environment | Temperature: -40 ℃~ 85 ℃ ,Relative Humidity: 20% RH~90% RH |
Storage Environment | Temperature: -40 ℃~ 85 ℃, Relative Humidity: 10% RH~90% RH |
